Save $110
filler
Wiring Loom Options: Boats Up To 6 Mtrs
Price:
$1,794 $1,904

Description

THE ALL NEW, ALL STAINLESS STEEL PRO SERIES VIPER WINCH IS SHIPPING!

“The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia”

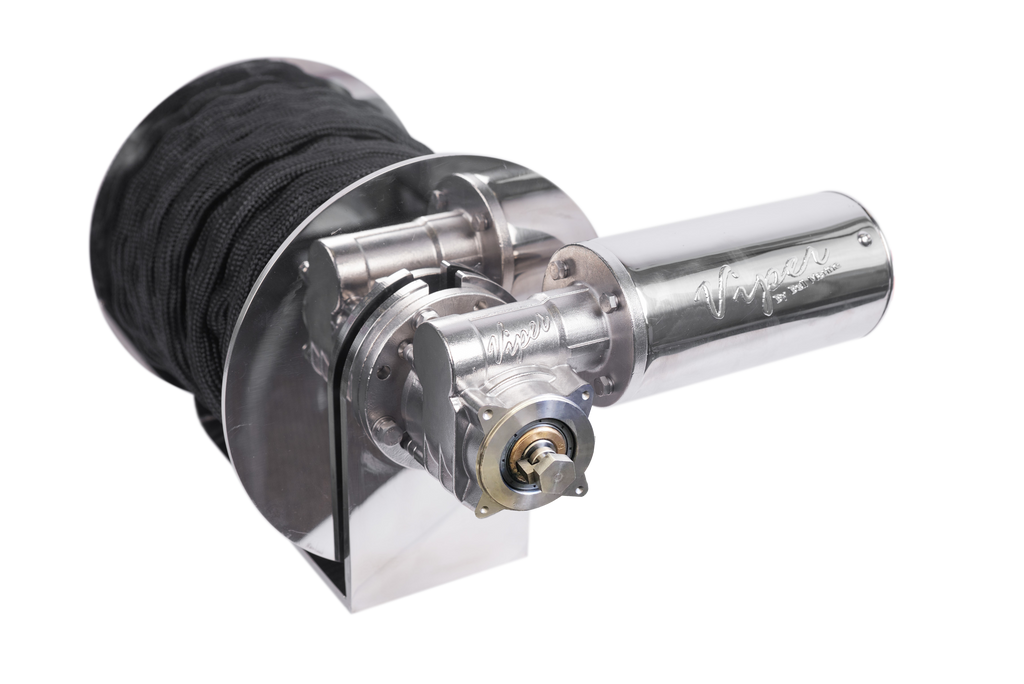

Don’t be fooled by the name “MICRO” or by its size, this is one of the most powerful electric drum winch for its size and was designed to fit into bow riders, tinnies, walk-around’s, bass boats and any boat with restricted anchor well space or even none at all. When it comes to speed the Viper Micro is no sloth, it still houses the famous Viper 1000W electric motor (hand polished 316 stainless steel) and rotates its drum at speeds of up to 45mtrs per minute (fall rate) ensuring you get onto your GPS mark each and every time!

Now includes an Emergency Manual Release Safety Feature. This feature enables you to deploy your anchor if your boat has lost all power and is heading for a cliff, sand bank or a bar crossing, you can lower your anchor without power. Making sure you can safely anchor your boat avoiding dangerous drifting into a hazardous location. The winch will allow the anchor to release to the seabed. Once the anchor is on the bottom, tie your rope to a bollard to be safely anchored. Then you can call the coast guard or your local emergency marine service.

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 1 piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards. Constructed from 8mm plate 316 marine grade stainless steel (hand polished to a mirror finish) & comes std with a bullet proof 5 YEAR Viper performance warranty, you can’t go past a Viper.

Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.

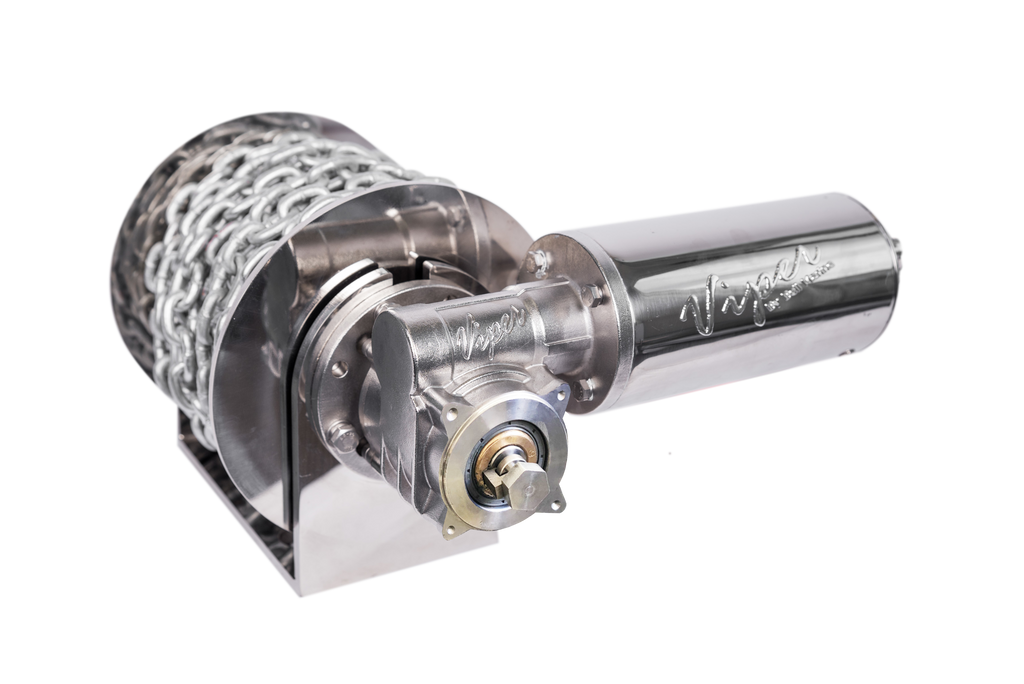

Bundled with 60mtrs of 6mm double braid rope and pre spliced to 6mtr of gal 6mm short link chain ready to use! (Total 66m Rope/Chain)

Suits vessels from 4mtr right up to 8mtr and has no problem raising anchor sizes over 30lb or 15kgs with ease all day long!

All you have to add is your own cabling or one of our factory made Bell Marine tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!

Please note: 3B&S cables are already attached to our motor and leak tested to a IP68 Rating.

INSIST ON A NEW “S” SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!

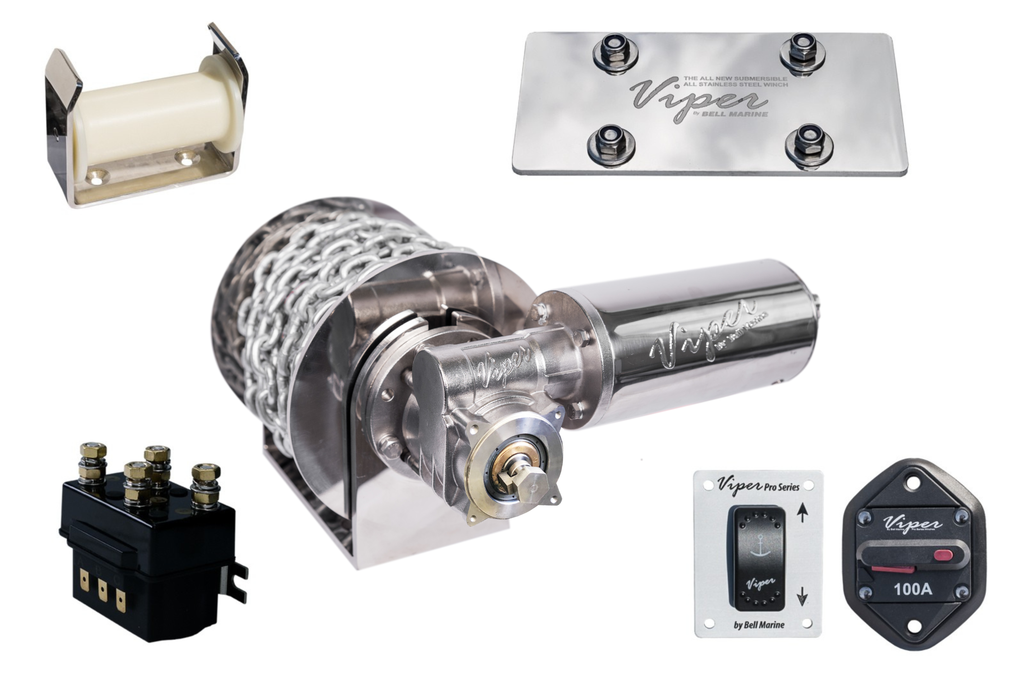

What’s included:
30038-S Viper Pro 1000 “Micro” Submersible Electric Drum Anchor Winch
30045 60m of 6mm double braid premium rope spliced to 6m of 6mm chain
30001 Small Viper Pro Series Anchor Swivel
30009 Small Viper Deluxe Anchor Roller
30020 200amp reversing solenoid
90021 LED illuminated marine rocker switch
90046 Viper laser etched LED illuminated switch cover
30046 100amp flush mount circuit breaker with rubber seal
30051 Single LED switch S/S face place
30052 Combo LED switch and circuit breaker S/S face plate





30038-6S


Wiring Loom

To Suit Boats Up To 6.0 Mtrs – (MICRO/RAPID 1000) - 30034

Bell Marine anchor winch wiring looms are individually hand crafted and fully tested before we ship. Simply order your loom depending on the length of your boat when you order your winch and all you will need is the tools and know how to complete your installation.

We only use marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.

Positive Cable:                                                                      Negative Cable

Battery to Circuit Breaker:     4.5M                                 Battery to Solenoid:                5.5M

Circuit Breaker to Solenoid:   1.0M                                 Not Applicable

Solenoid To Winch Motor:     2.5M                                 Solenoid to Winch Motor:     2.5M

  • Please note that Switch Looms are 1.5M in length and should suit most boat.

  • Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  3.5 M from Solenoid to Winch Motor

  • Please note We have tried to accommodate for almost all boats up to 6.0M, however we cannot guarantee that one size fits all.

  • WARNING: Install your Viper winch and loom into the boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.

Weight

7 kg

Dimensions

34 × 37 × 32 cm








To Suit Boats Up To 8.0 Mtrs – (MICRO/RAPID 1000) - 30035

Bell Marine anchor winch wiring looms are individually hand crafted and fully tested before we ship. Simply order your loom depending on the length of your boat when you order your winch and all you will need is the tools and know how to complete your installation.

We only use marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.

Positive Cable:                                                                             Negative Cable

  • Battery to Circuit Breaker:     5.8M                                 Battery to Solenoid:                6.8M

  • Circuit Breaker to Solenoid:   1.5M                                 Not Applicable

  • Solenoid To Winch Motor:     3.2M                                 Solenoid to Winch Motor:     3.2M

  • Please note that Switch Looms are 1.5M in length and should suit most boat.

  • Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  4.2 M from Solenoid to Winch Motor

  • Please note: We have tried to accommodate for almost all boats up to 8.0M, however we cannot guarantee that one size fits all so please check above measurements.

  • WARNING: Install your Viper winch and loom into your boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.

Weight

8.1 kg

Dimensions

37 × 34 × 30 cm



To Suit Boats Up To 6.0 Mtrs – (MICRO/RAPID 1000) - 30034
To Suit Boats Up To 8.0 Mtrs – (MICRO/RAPID 1000) - 30035
