Viper “S” Series RAPID Winch 1000W - 100m Rope and Chain + Wiring Loom

THE ALL NEW, ALL STAINLESS STEEL PRO SERIES VIPER SUBMERSIBLE WINCH IS SHIPPING!

“The First 316 Stainless Steel Marine Gearbox on a Drum Anchor Winch in Australia”

The Viper Pro Series RAPID has set new standards in anchoring systems. The new Viper 1000W electric motor (hand polished marine 316 grade stainless steel) has made it one of best selling anchor winch in Australia. With a fall rate of 50 meters per minute and a retrieval rate of 45 meters per minute the Viper will ensure you get onto your GPS mark, first time, every time!

Now includes an Emergency Manual Release Safety Feature. This feature enables you to deploy your anchor if your boat has lost all power and is heading for a cliff, sand bank or a bar crossing, you can lower your anchor without power. Making sure you can safely anchor your boat avoiding dangerous drifting into a hazardous location. The winch will allow the anchor to release to the seabed. Once the anchor is on the bottom, tie your rope to a bollard to be safely anchored. Then you can call the coast guard or your local emergency marine service.

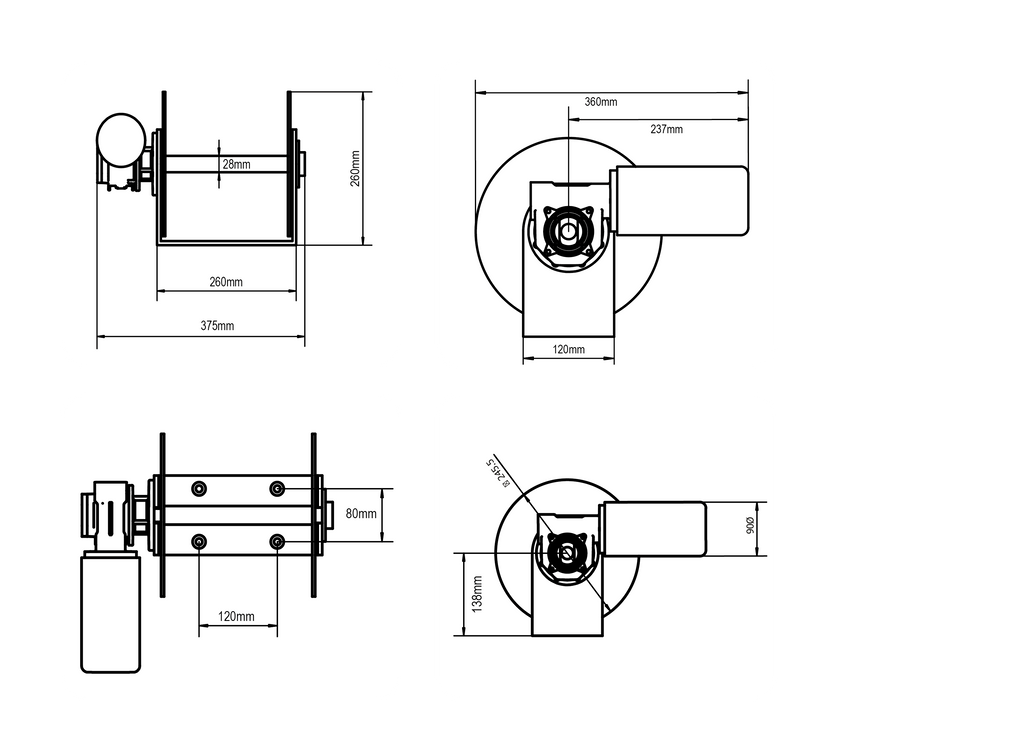

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 28mm one  (1) piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.

With a bullet proof 5-year Viper performance warranty, you can’t go past a Viper. Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.

The Viper Pro Series RAPID 1000 All Stainless Steel Anchor Winch Bundle also Inc 100mtrs of 6mm Double Braid Rope, Pre-Spliced to 8mtrs of 6mm Gal Short Link Anchor Chain (Total 108mtrs Rope/Chain)

All you have to add is your own cabling or one of our Factory made Bell Marine tinned copper marine wiring looms, you will never have to break your back pulling up your anchor and chain again!

Please note: 3B&S cables are already attached to our motor and leak tested to a IP68 rating.

INSIST ON A NEW PRO SERIES ALL STAINLESS VIPER ANCHOR WINCH FOR YOUR BOAT!

What’s included:
30021-S Pro Series 1000 Submersible Electric Drum Anchor Winch
30022 100m of 6mm double braid premium rope spliced to 8m of 6mm chain
30001 Small Viper Pro Series Anchor Swivel
30009 Small Viper Deluxe Anchor Roller
30020 200amp reversing solenoid
90021 LED illuminated marine rocker switch
90046 Viper laser etched LED illuminated switch cover
30046 100amp flush mount circuit breaker with rubber seal
30051 Single LED switch S/S face place
30052 Combo LED switch and circuit breaker S/S face plate

30021-6S

Wiring Loom

To Suit Boats Up To 6.0 Mtrs – (MICRO/RAPID 1000) - 30034

Bell Marine anchor winch wiring looms are individually hand crafted and fully tested before we ship. Simply order your loom depending on the length of your boat when you order your winch and all you will need is the tools and know how to complete your installation.

We only use marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.

Positive Cable:                                                                      Negative Cable

Battery to Circuit Breaker:     4.5M                                 Battery to Solenoid:                5.5M

Circuit Breaker to Solenoid:   1.0M                                 Not Applicable

Solenoid To Winch Motor:     2.5M                                 Solenoid to Winch Motor:     2.5M

• Please note that Switch Looms are 1.5M in length and should suit most boat.

• Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  3.5 M from Solenoid to Winch Motor

• Please note We have tried to accommodate for almost all boats up to 6.0M, however we cannot guarantee that one size fits all.

• WARNING: Install your Viper winch and loom into the boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.

To Suit Boats Up To 8.0 Mtrs – (MICRO/RAPID 1000) - 30035

Bell Marine anchor winch wiring looms are individually hand crafted and fully tested before we ship. Simply order your loom depending on the length of your boat when you order your winch and all you will need is the tools and know how to complete your installation.

We only use marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.

Positive Cable:                                                                             Negative Cable

• Battery to Circuit Breaker:     5.8M                                 Battery to Solenoid:                6.8M

• Circuit Breaker to Solenoid:   1.5M                                 Not Applicable

• Solenoid To Winch Motor:     3.2M                                 Solenoid to Winch Motor:     3.2M

• Please note that Switch Looms are 1.5M in length and should suit most boat.

• Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  4.2 M from Solenoid to Winch Motor

• Please note: We have tried to accommodate for almost all boats up to 8.0M, however we cannot guarantee that one size fits all so please check above measurements.

• WARNING: Install your Viper winch and loom into your boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.
