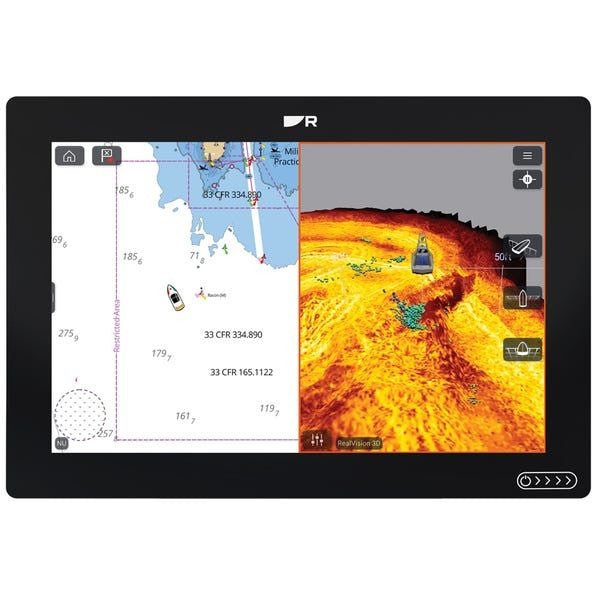

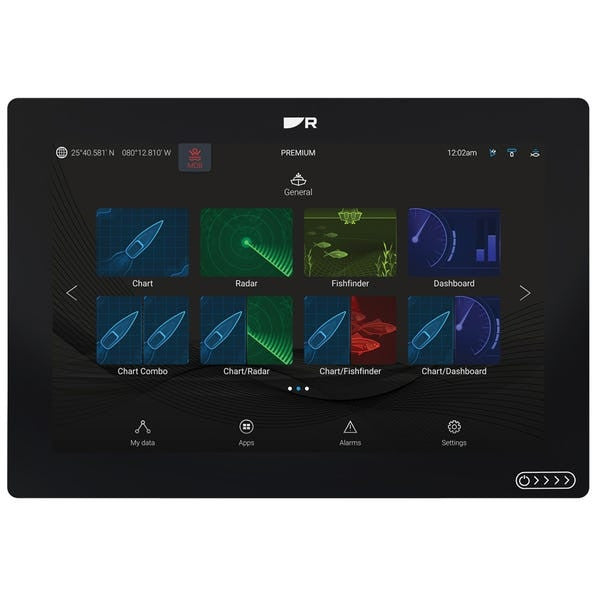

Raymarine AXIOM+ 12 RV 12 inch MFD with RV-100 Transducer AUS/NZ LightHouse Chart

Axiom®+ RV is a new generation of Axiom Chartplotters with RealVisionTM 3D CHIRP sonar technology.

Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game.

A quad-core processor delivers responsive performance and gives you the power to expand Axiom+ RV with solid-state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality.

Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.

RealVision 3D Sonar

• High-frequency CHIRP sonar for targeting fish and determining bottom density.

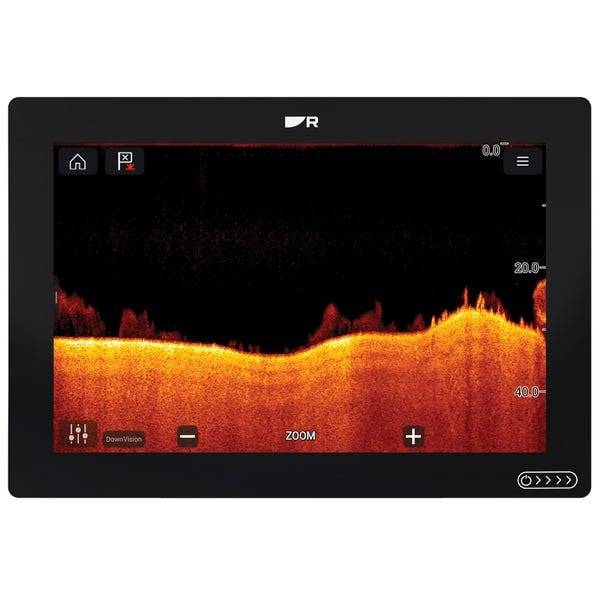

• CHIRP DownVision sonar for high-definition views of structures, fish habitats, and man-made objects.
• CHIRP SideVision for scanning beyond casting distance to see fish, structures, and submerged objects out to the sides of the boat.

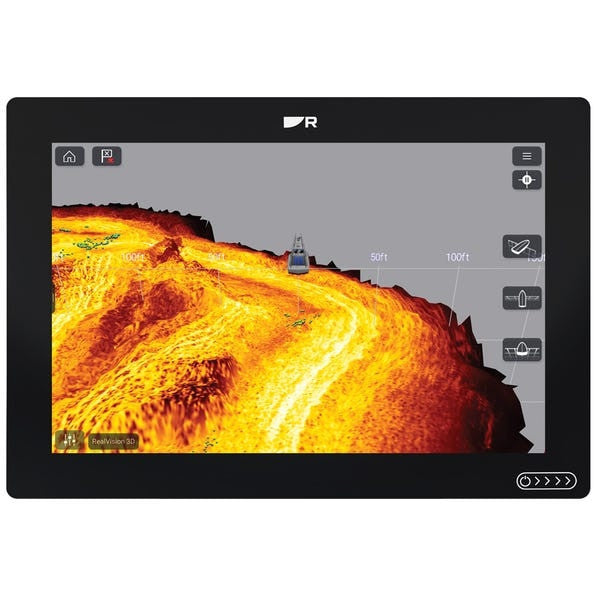

• RealVision 3D Sonar which provides a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column.
• Built-in 600W Digital Sonar at 50 kHz and 200 kHz. Add an optional adapter cable and AIRMAR transducer to your Axiom+ RV system and fish to even deeper depths with increased power and lower frequencies.

Maximum Visibility

• Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning colour.
• Improved viewing with new LightHouse color themes, including Day, Dusk, and Night mode.
• 25 percent brighter (up to 1,800 nits)

Performance Tuned

• Fast and fluid chart redraw of LightHouse, Navionics, and C-MAP electronics charts.
• Powerful quad-core processor, plus increased onboard storage for personal data and apps.
• Smart and intuitive LightHouse OS makes navigating easy.
• Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.

HydroToughTM

• Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.
• All-weather HydroTough technology delivers improved colour and contrast and accurate touch controls - even when wet.

Specifications

Physical

• Dimensions (Trunnion mounted) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

• Dimensions (Surface/Flush mounted) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

• Accessory connection: USB Micro B
• Ethernet connection: RayNet (10/100 Mbits/s)
• External storage: MicroSDXC card slot x 1
• NMEA 2000 connection: DeviceNet (male connector built into power cable)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
• Internal storage: 16 GB Solid State (14 GB usable)
• Transducer connection: 25-pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
• Australia and New Zealand LightHouse Chart

LCD

• Size (diagonal) Axiom+ 12: 12"

• Resolution: Axiom+ 12: WXGA 1280 x 800

• Viewing angle: Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°

• Illumination: Axiom+ 12: 1800 nits / 1800 cd/m2

• Protective coating: HydroToughTM Oleophobic
• Type: IPS (In-Plane Switching)
• Colour depth: 24-bit
• Number of simultaneous touches: 2

Power

• Power consumption: Axiom+ 12: 18.96 W

• Operating voltage range: 8 V dc to 16 V dc
• Fuse rating: 7 A
• Nominal supply voltage: 12 V dc
• LEN (NMEA 2000 Load Equivalency Number) 1

Sonar

• Depth range: CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)

Environmental

• Operating temperature: -25°C to +55°C
• Storage temperature: -30°C to +70°C
• Relative humidity: Up to 93% @ 40°C
• Waterproof rating: IPx6, IPx7

GPS

• Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
• Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
• Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
• Channels: Track up to 28 satellites simultaneously
• Antenna: Internal - Ceramic chip mounted near top of unit
• GNSS compatibility: GPS, GLONASS, Beidou
• Almanac Update: Automatic
• Signal Acquisition: Automatic
• Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
• Operating frequency: 1574 MHz to 1605 MHz
• Refresh rate: 10 Hz (10 times per second)
• Time to first fix from cold start: < 2 minutes

What's in the box?

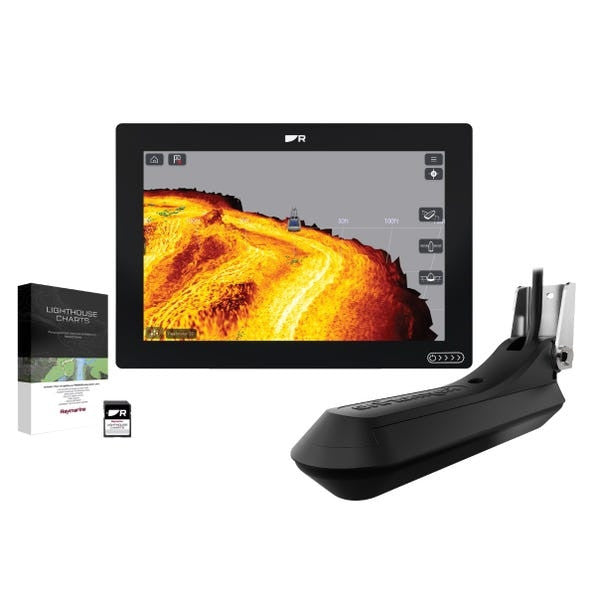

• MFD (Chartplotter)
• Trunnion bracket
• Trunnion knobs x 2
• RV-100 Transducer
• Suncover
• Documentation
• Panel mount gasket
• Rear mounting brackets for 12" display
• Threaded studs (M5x58) x 4
• Thumb nuts (M5) x 4
• Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
• DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)

https://youtu.be/uerEIuH6J2w?si=qSqMBfeDg4qA8X5p

E70639-03-ANZ
