Description
| FEATURES |

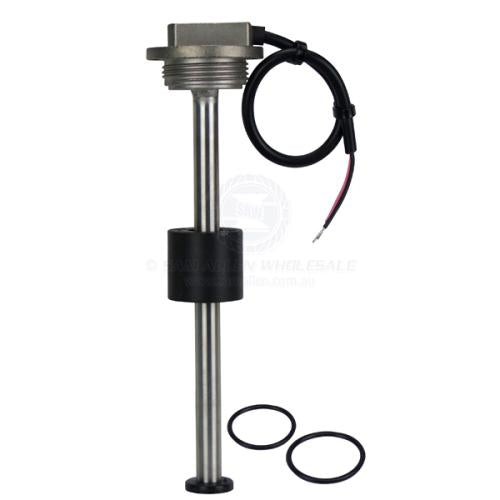

| • Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration. • Output signal: 240~33 Ohms. • 316G stainless steel main body. • 1-1/4 inch BSP twist-on thread assembly. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • Protection Rating: IP67. • Mounting: 38mm x 2.6mm O-ring. 43mm x 3.5mm O-ring. • 250mm tinned wire with PVC cover. • 33mm float diameter. |
| SPECIFICATIONS (Click Part No. for More Details / Guides / Documents) |
| Part No. | 41250 |
| Length | 250mm |
| Mount Style | 1-1/4 inch BSP |
| Mount Flange | Dia. 54mm |
| OHMS | 240-33 |
| Note | Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. |
