Launch and Retrieve Boat Latch Set - Towing Eye for Aluminium Boats

Set of L&R Boat Latch for aluminium boats. The towing eye standard snare fits a wide range of towing eyes without having to bore holes.

The L & R Boat Latch Kit offers an innovative solution for launching and retrieving your aluminium boat quickly and easily—whether it’s in the lake, river, ocean, or wherever else you might fancy. Designed by boaties (and engineers) for boaties, and made from durable marine grade 316 stainless steel that requires no strings, wires or electronics, the latch kit has been on‑the‑water tested by serious boat users for over 15 years.

With the L & R Boat Latch you’ll launch and retrieve with such ease that you’ll be the envy of everyone down at the ramp – and you’ll stay dry doing it. Even better, you can launch and retrieve your boat on your own, meaning you can use it more often and more easily every time.

What’s Included

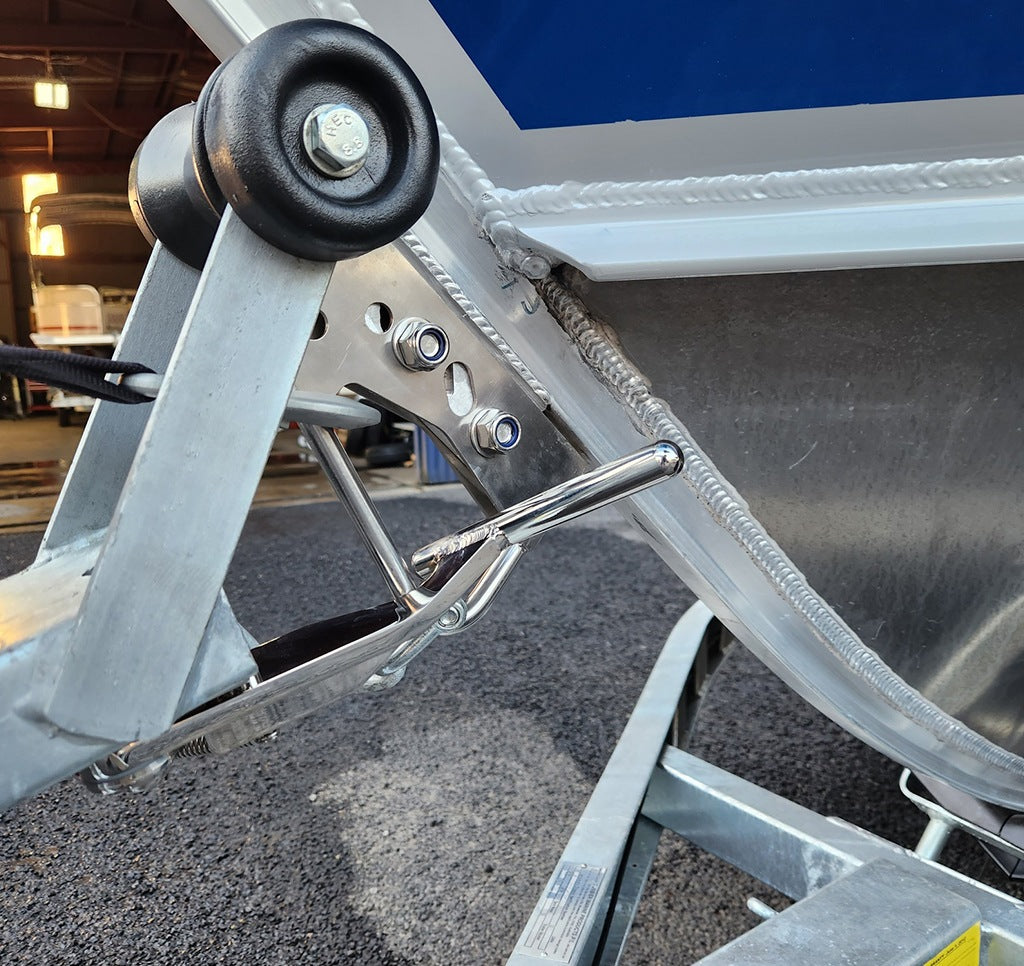

• Latch with a lever to launch or retrieve, made from marine grade (316) stainless steel with a tensile strength equal to 5.4 tonnes

• Snare to suit Aluminium Towing Eye

• OPTIONAL EXTRAS: Wedge Plate Kit; Roller Extender Kit

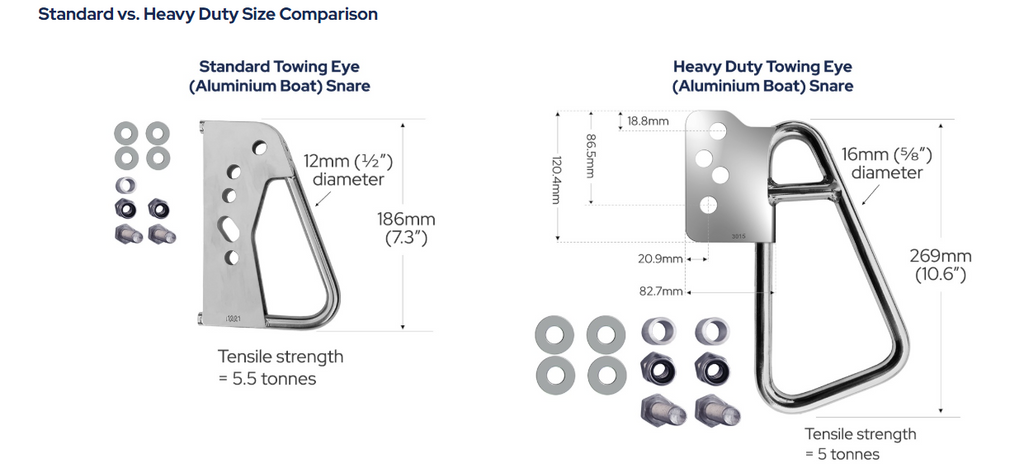

Sizes, Strength & Pack Details

• Standard Snare (U‑bolt snare size)
  Tensile strength: 4 tonnes
  Pack size: 423 mm × 182 mm × 74 mm
  Weight: 2.6 kg

• Heavy Duty Snare (U‑bolt snare size)
  Tensile strength: 5 tonnes
  Pack size: 423 mm × 290 mm × 119 mm
  Weight: 3.8 kg

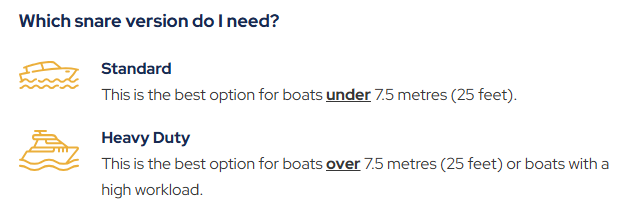

  Notes: Heavy duty snare is 33% bigger than the standard snares, and is intended for large boats over 6.5 m or 21 ft.

• Latch (both versions use the same latch)
  Tensile strength: 5.4 tonnes

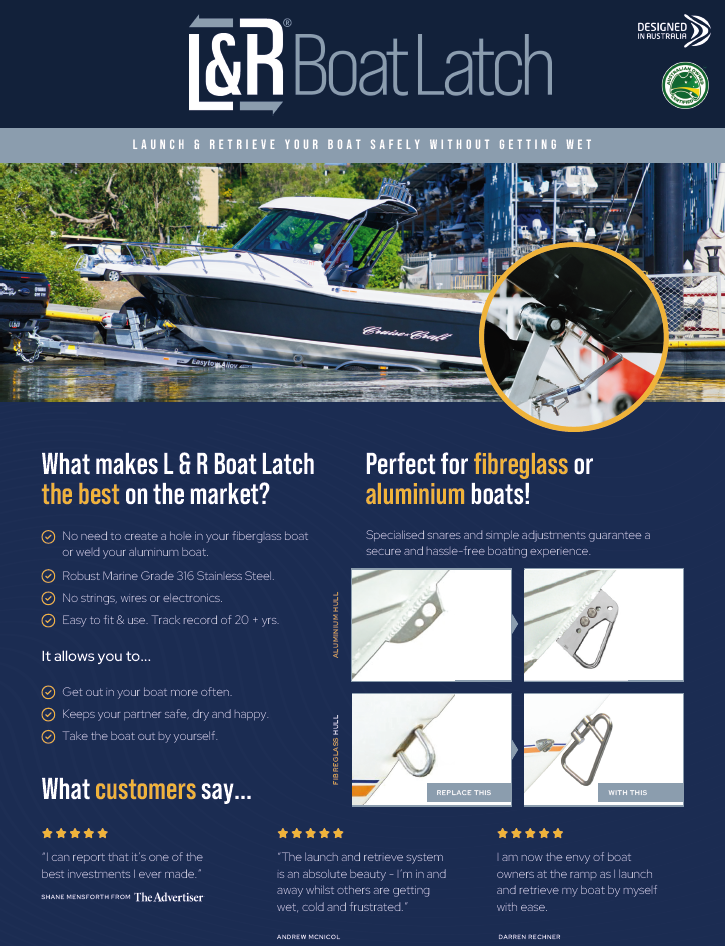

Fibreglass boats utilise the same latches but have U‑bolts. They are listed separately.

Strength & Safety

With two options – the standard and heavy options – the L & R Boat Latch Kit is designed to be a robust system that can handle almost any boat. L & R have established a reputation in Australia for an extremely robust product despite the abuse that boaties throw at it. Engineered from 316 stainless steel, the latch is free from welded weak points—delivering superior strength and reliability. All testing has been independently verified by the National Association of Testing Authorities, Australia (NATA), ensuring the highest standards of performance and safety.

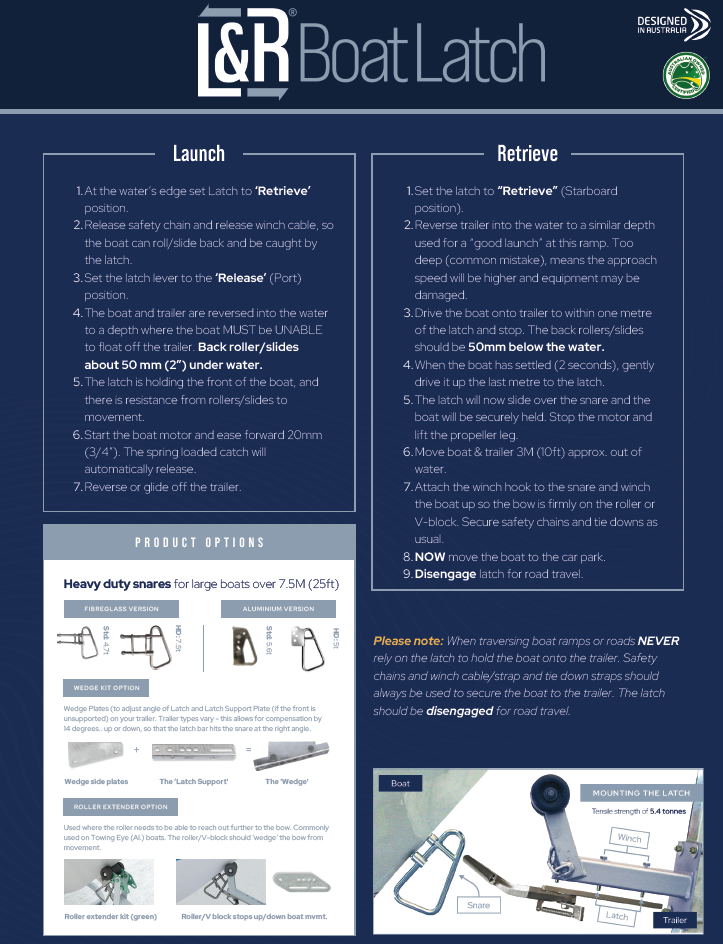

Important: The L & R Boat Latch is not intended for road travel, only for use on the boat ramp. On the road your boat should be tensioned up with the winch and tie downs used to keep it in place. Always detach the winch and the safety chain to launch and re‑attach before you leave the ramp at the water’s edge.

FAQs

Can I take my boat out by myself with your system?

You bet! The L & R Boat Latch Kit is all about letting you handle your boat on your own. There’s no need to drag your other half into it (it’s got a rep as the ‘marriage saver’ for a reason) or try to find someone hanging out at the ramp to help. You can manage the entire process – from launch to retrieval – on your own, and look like a pro doing it.

Is it easy to install?

In general, the L & R Boat Latch Kit is very easy to install. Just refer to the detailed instructions in the Installation Guide. We have approved installers we can recommend. Or you can work with your preferred trailer or boat team.
Please note, the L & R Boat Latch must be installed according to the Installation Guide or your warranty will be void.

Why is the L & R Boat Latch system the best on the market?

The L & R Boat Latch system has been the number one choice of boaties around the world for more than 15 years. And that’s because the system is strong, unique, robust, flexible and fully automatic. With the L & R Boat Latch system it’s easier than ever for you to get your boat in and out of the water. And you can install it easily without drilling or welding into your expensive and beautiful boat. The best part is that the system keeps you and your family safe and secure by keeping you out of the water during launch and retrieval.

Does it come with a warranty or guarantee?

The L & R Boat Latch comes with a limited lifetime warranty for manufacturer faults.
L & R products must be installed, and used, in accordance with the printed instructions on the packaging, printed inserts and the information published on this website. Launch & Retrieve Boat Latch takes no responsibility for any product that is not installed and used within these guidelines. Improper installation or use will void any warranty.

Standard Version - LR113

Heavy Duty Version -  LR107
